Smart Integrated Yogurt Production Line Equipment For Standardized Milk
Features and advantages:
1. Processing capacity can be ranged from 2T/Day to 1000T/Day.
2. High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.
3. PLC control the whole production line, saving labor force and facilitate production management.
4. Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.
5. Whole line with features as high level automatic, low labour intensity, easy operation, safe function and low operation cost.
6. Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.
CONSTRUCTION FEATURES
Working capacity from 5 tons/d up to 100 tons/d
Products - Stirred yogurt
- Stirred yogurt with fruit puree or flavor
- Yogurt with cereals, fibre
- Set yogurt
- Drinking yogurt
- Frozen yogurt
- Concentrated yogurt
- Kefir
- Package in cup, gable top carton, bottle
Specifications:
| Brand Name: |
zhe jiang jinben |
| Capacity |
5-200TPD |
| Raw material |
Fresh cow milk, buffalo milk, goat milk, camel milk
or milk powder, or both mixed
|
| End product |
Set yoghurt, stirred yoghurt, Lassie, Yakult |
| Shelf life |
20-25days |
| Final product fat (%) |
Semi-skimmed or double toned milk (1.5%);
Full cream(3% or 6%); Toned milk(3%)
|
| SNF |
8.5%(min) |
| Fresh milk inlet temperature |
4 ℃ |
| Fermentation temperature |
45 ℃ (5-8hours) |
| Package for end product |
Plastic cup, plastic bags, glass bottle, PET bottles |
| Certification: |
ISO9001/CE/SGS |
| Main material for machines |
SUS304 or SUS316 |
| Place of Origin: |
China |
| Manufacturer history |
More than 10years |
| Voltage |
380V 50Hz/110V 60hz/415V 50Hz |
| Power consumption(Kw) |
energy saving type, about 100-500kw, |
| Operator needed |
About 6-20persons |
| Cooling water consumption |
About 80-300M3 |
| Steam consumption |
About 300-5000T/H, |
| Factory space needed |
About 500-5000Sqm |
| Warranty |
12 months after commissioning |
| After sales service |
Engineers available to service machinery overseas |
* Delivery time:
120 days after receive TT deposit or formal 100% L/C, upon approval on technical drawings and specifications by client.
* Duration of Guarantee:
1. within 12 months since the installation and commissioning of equipment are finished, If the defects of equipment and spare parts result from the seller, the seller will supply spare parts and maintenance by free of charge. If the defects result from the buyer’s improper use of equipment, seller will charge the cost of maintenance and spare parts.
2. After 12 months since the installation finished, if the equipment and spare parts are defected, the seller will charge the cost of maintenance and spare parts.
3. If Buyer request Seller and engineer to Buyer's factory, buyer should supply seller’s workers the round trip air tickets and subsidary for each worker per day. And the local traffic, accommodation and lodging fees should also be available.
Product Tags:
|
|

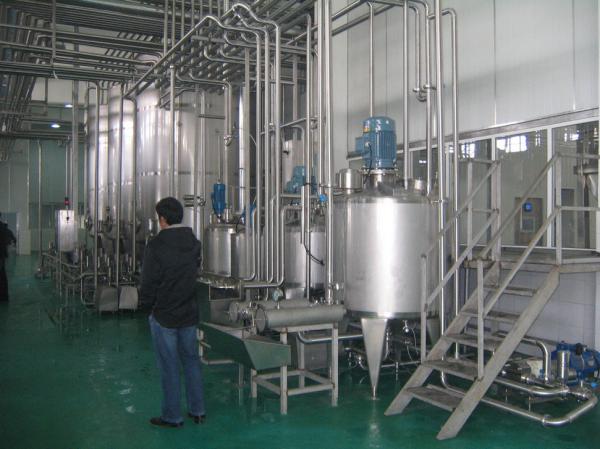

Smart Integrated Yogurt Production Line Equipment For Standardized Milk Images
|
